    2000w IPG raycus cnc fiber laser cutting machine for 6m length steel metal pipe tube

    Ask Lasest Price
    Brand Name : ZODO
    Model Number : ZD-6002
    Certification : CE,FDA,ISO9001
    Price : USD38000-42000$/SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50SETS PER MONTH
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    2000w IPG raycus cnc fiber laser cutting machine for 6m length steel metal pipe tube

    1000w metal steel pipe cnc fiber laser cutting machine For Stainless Carbon Mild Steel Brass Copper Cut


    1. Application materials and Industry

    This metal pipe laser cutting machine price can effectively cut pipe, square tube, rectangular tube, oval tube, parallel oval tube, D-tube and other styles of pipe.

    2.Specification

    Max. Cutting Speed5-20 Meters / Min (Up to Materials)
    Max. Location Speed90m/min
    Laser Wavelength1080nm
    Minimum Line Width≤0.1mm
    Location Precision≤±0.01mm
    Re-Location Precision±0.01mm
    Max. Moving Speed100m/min
    Supporting FormatPLT, DXF, BMP, AI
    Power Demand380V/50HZ
    Cooling WayWater Cooling
    Worktable Max. Load800kgs
    Pipe typeRound,oval,special-shaped pipePipe type
    Table Driver SystemPMI OR hiwin from Taiwan GUIDE APEX OR TWIN from Taiwan RACK
    Pipe Length6m(3-9m optional)
    Control MethodOffline Movement Control
    Diameter1mm-300mm

    3.Training and after sale service


    1) Customers can send technician to our factory to accept training or we send technician to customer's factory to train the workers until they master the technique of using the machine, and the customer should be responsible for the round trip air tickets,accomodation and safety in customer's factory

    2)Training fees 150$/day

    After sales service

    3)We offer whole life free consultation service for the the machine.

    4)1year free maintain service (change spares free within 1year,not include Consumables)you only need bear the freight cost

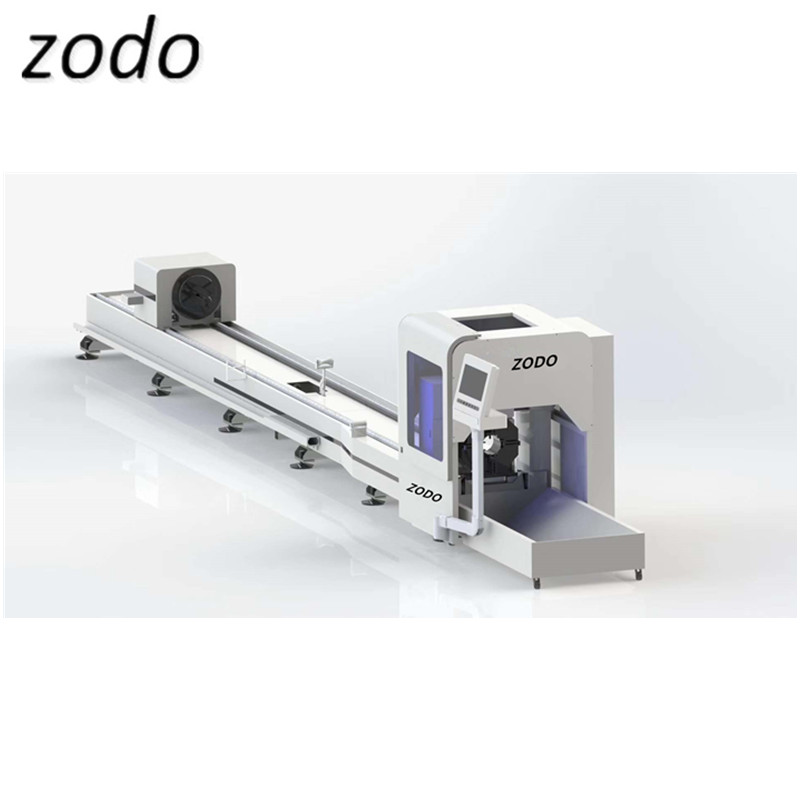

    Machine pictures



    Sample pictures


    2000w IPG raycus cnc fiber laser cutting machine for 6m length steel metal pipe tube2000w IPG raycus cnc fiber laser cutting machine for 6m length steel metal pipe tube
