| Brand Name : | ZODO |
| Model Number : | ZD-6002 |
| Certification : | CE,FDA,ISO9001 |
| Price : | USD38000-42000$/SET |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 50SETS PER MONTH |
Metal pipe tube fiber laser cutter,fiber laser cutting machine for stainless steel, carbon steel
Description :
ZD6002 Laser pipe Cutting Machine Series adopts the most sophisticated Germany IPG laser generator, advance laser technology, computer control
technology and high-performance CNC laser power system to process all kinds of metalpipe at high speed, high accurate, efficiently cutting round tube, square tube, rectangular tube, oval tube, waist round tube, hexagonal tube, angle iron, channel steel, D-tube and other metal pipes, can processing Slotted, punched, cut graphics ect.
Application industries:
Applied in transportation , electrical, machinery, medial, construction & decoration and other industries , especially used in cutting tube, square, oval and other tube metal.
Application material:
| Materials | Can Cut Or Not |
| Stainless Steel | Yes |
| Alloy Steel | Yes |
| Aluminum | Yes |
| Iron | Yes |
| Copper | Yes |
| Silver | Yes |
| Titanium | Yes |
| Other material please contact us. | |
Technical parameters
| Pipe type | Round tube, Square tube |
| Round Tube (diameter mm) | 20-200 |
| Square tube (diameter mm) | 15-160 |
| Y axis maximum displacement speed (m/min) | 60 |
| Y axis maximum acceleration (m/s2) | 0.6G |
| Spinning speed (r/min) | 200 |
| Cutting accuracy (mm) | ±0.1mm |
| X/Y/Z axis repeat positioning accuracy (mm) | ±0.1mm |
| Tail material is not more than (mm) | <50 |
| Driving method | Gear and rack+Synchronous wheel |
| CNC system | CypCut laser cutting system |
| Cooling Mode | Water Cooling |
| Max. cutting speed | 20mm/s |
| Cutting Thickness | 0-20mm |
| Control Software | Cypcut/max/IPG |
| Laser type | Fiber laser generator |
| Positioning accuracy | 0.01mm |
| Dimensions | 6500*2500*1100mm(1600kg) - cut size:6000*200mm 3500*2500*1100mm(800kg) - cut size:3000*200mm |
| Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPEG,CDR |
| Applicable material | Mainly used in metal material etc. |
| Max. Pipe diameter | 160mm |
| Min. Pipe diameter | 10mm |
3.Machine pic

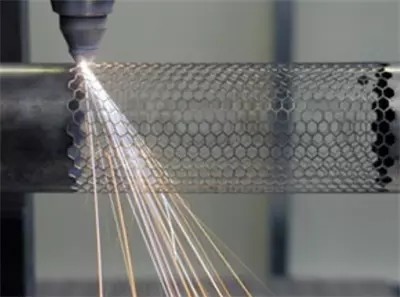

Sample show
|
|
