3040 50W Laser engraving machine , 300x400mm mini laser cutter machine for crafts DIY
Laser engraving machine ZD-3040-50W conclude :
1: Honeycomb with Electric up&down platform for engraving different height object
2: Air filter with Compressor Included
3: Red Pointer
4: Laser Software license: corellaser or laserdraw
5..Main board: ENGRAVING BOARD M2
6.laser tube :Beijing LF brand .
Specification
| Model | ZD-3040-50w/ZD-4040-50W | Working temperature | 15-35℃ |
| Laser type | Sealed Co2 laser tube | Working humidity | 5-95% |
| Laser power | 50W | Driving mode | Stepping motor |
| Working area | 300*400/400*400mm | Cooling mode | Forced water cooling |
| Engraving speed | 0-60000mm/min | Plat form | Electric up-down table |
| Power supply | 220v±10%50hz/ 110v±10% 60HZ | Dimensions | 1000*800*330MM |
| Location precision | 0.1mm | Net weight | 70kg |
3.Applying material
The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, fabrics, paper ,film, canvas , Acrylic and Plastics.
4.Applicable Industry
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoe making, furniture, industry, craft work, nameplates decorations, woodcut and other industries.

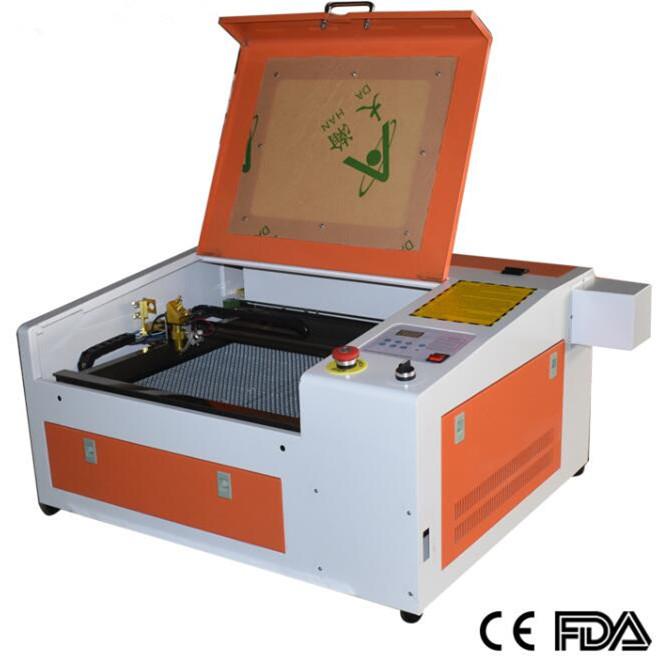

5.Machine picture
|
|
