    6015 Metal tube and plate fiber laser cutting machine with rotary device

    Ask Lasest Price
    Brand Name : ZODO
    Model Number : ZD-3015
    Certification : CE,FDA,ISO9001
    Price : USD38000-42000$/SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50SETS PER MONTH
    • Product Details
    • Company Profile

    6015 Metal tube and plate fiber laser cutting machine with rotary device

    6015 Metal tube and plate fiber laser cutting machine with rotary device


    Metal tube and plate fiber laser cutting machine with rotary device


    Model6015
    Working area (L*W)6000×1500mm
    X-axis running area6000mm
    Y-axis running area1500mm
    Z-axis running area120mm
    X/Y axis Repeated Position Precision±0.02mm
    Machine OutlookOpen Type
    Fiber Laser sourceIPG OR MAX 1000W-5000W
    Cross beamReinforced aluminum alloy crossbeam
    Laser HeadEmpower head
    Transmission systemDual-drive, precise rack and pinion
    Guide railPMI OR hiwin from Taiwan
    Rack&pinionAPEX from Taiwan
    Speed ReducerMotor reducer shimpo ,Japan
    Sheet part Servo motorYaskawa from Japan, Y axis-- 850w*2, X axis--1000w*1, Z axis-- 400w*1
    Water chillerHanli water chiller or S&A
    Control SystemBochu brand Cypcut control software
    Solenoid valveSMC from Japan
    ComputerIndustry computer
    Cutting HeadAuto tracking and Auto height adjustment
    Operating console

    LCD screen with key board and mouse


    SMOKE Extraction

    1500W blower for suction of fumes.


    Scrap removal system


    Wheel mounted trays are provided below the cutting area to Scrap removal system

    remove the scrap or small work piece fallen below the work support grits.

    Oil injectorAutomatic lubricating system

    2.Application


    Metal cutting, manufacturing of electrical switches, elevator manufacturing, household appliances manufacturing, kitchenware ,Instrument,decoration and so on


    manufacturing, processing tools, and other machinery manufacturing and processing industries.

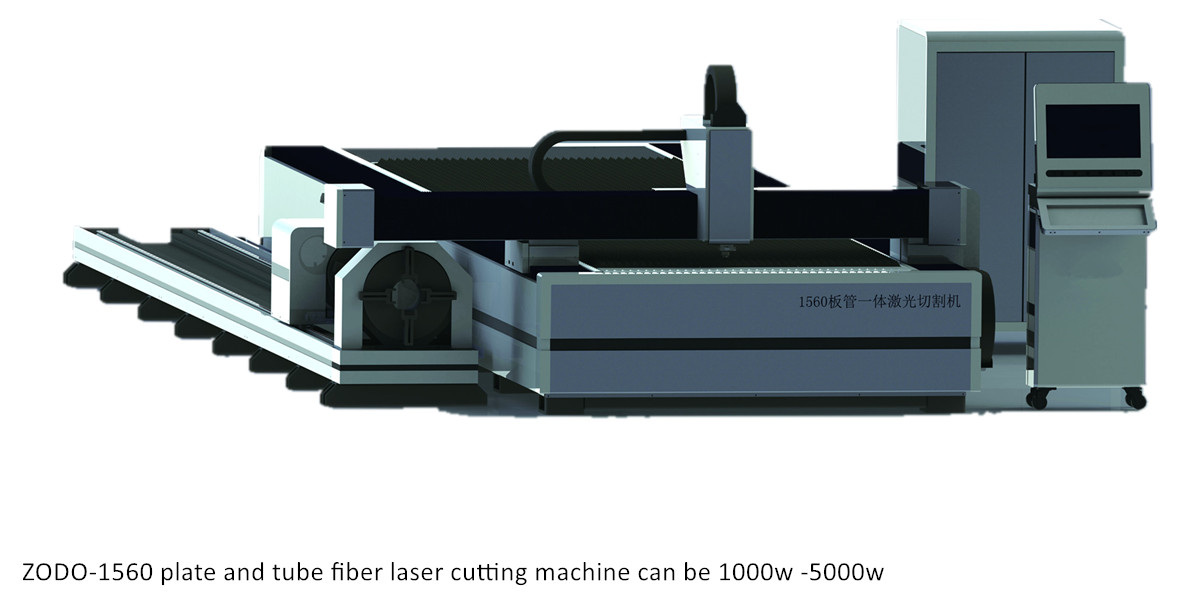

    3.Machine pic

    6015 Metal tube and plate fiber laser cutting machine with rotary device

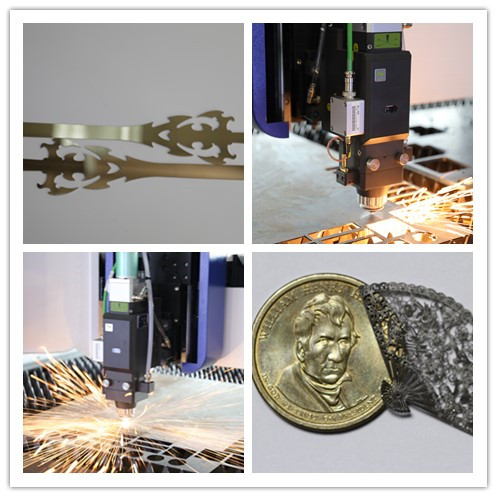

    fiber laser cutting machine samlple
