30W fiber laser marking machine for metal/plastic/tag/key chains/pen laser marker
1.Applicable materials:
Applicable various metal,. aluminum and some non-metal materials.
2. Applicable industry:
Metal,alloy ,oxide,ABS,epoxy resin,jewelry ,phone ,pen etc. which are widely applying for electronics,jewelry,automobiles,communication products,plastic buttons,IC,etc.
3.Technical Parameters
| Laser type | MAX optional |
| Software | EZCAD |
| Language | Six language |
| Laser power | 20W/30w/50w optional |
| Up down table | Yes |
| Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| Beam quality | <2 |
| Power stability | (8h) <± 1% RPM |
| Pulse repetition frequency | 20-60KHZ |
| Power consumed | <800W |
| Minimum line width | 50μm |
| Minimum character | 0.3mm |
| Laser Wavelength | 1064nm |
| Galvanometer Size | 100*100mm/110*110mm/200*200mm |
| Cooling way | Air cooling |
| Operating voltage | 110/220V ± 10% /,50/60HZ |
| Ambient operating temperature | 15 ° C - 35 ° C |
| Weight | 50kg./100kg for desk type |
| Dimensions | Portable type760*210*570 (mm)/desk type 98*88*100cm |
| Packing | plywood wooden packaging |

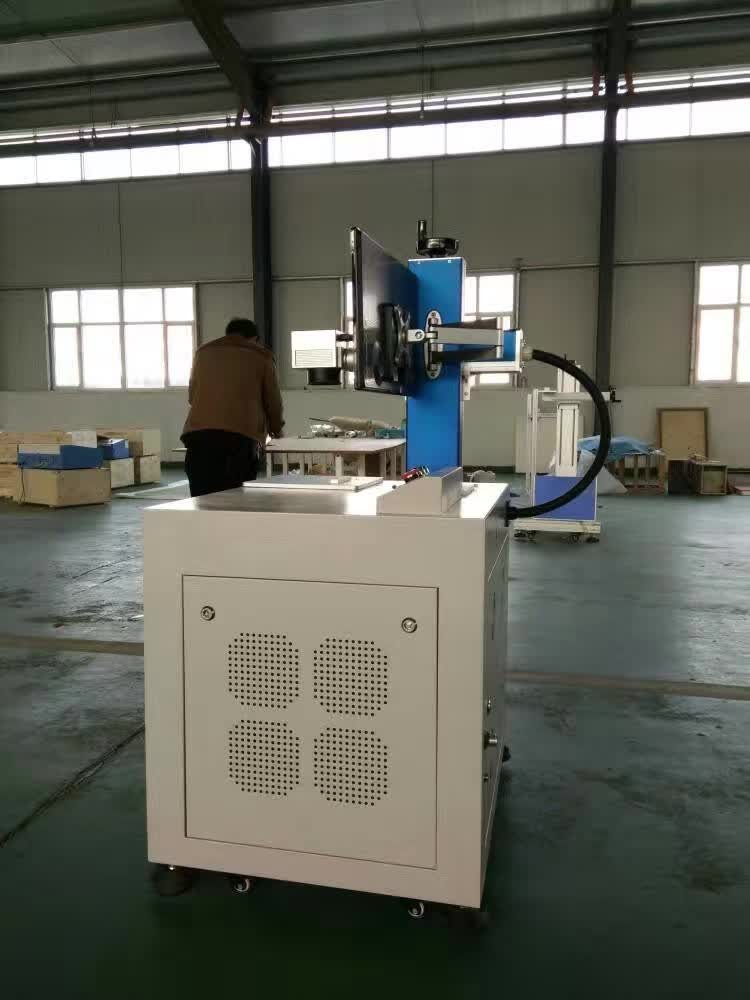

4. product pictures
Rotator
Fix the material and realize rotating marking ,any size can be customized.(the standard diameter size is 50mm,80mm,10mm)

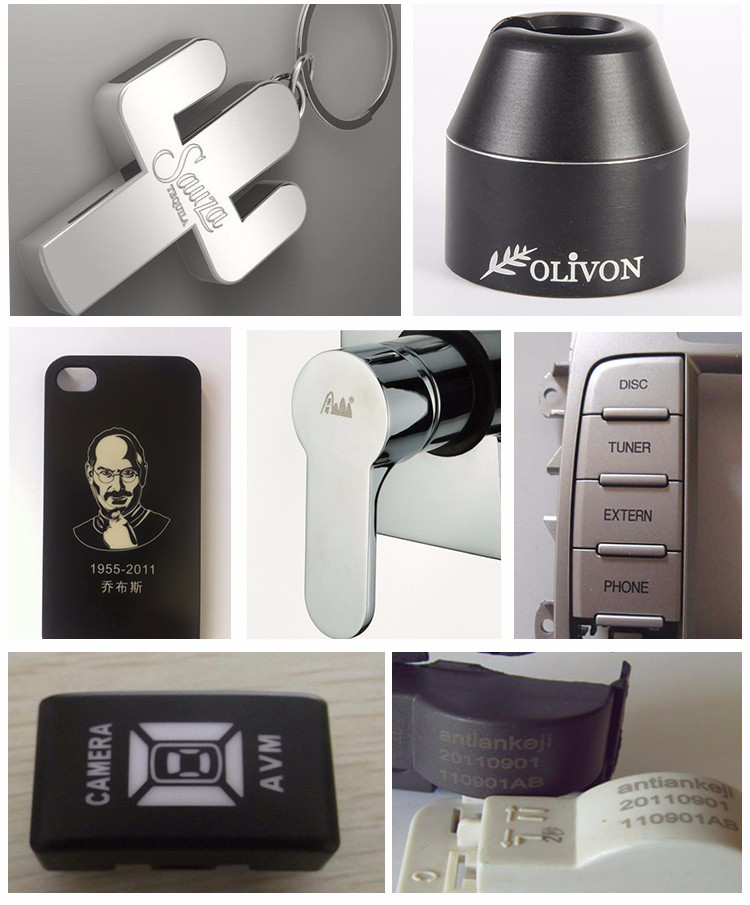

5. Sample pictures
|
|
